Submersible Pump Cable · 1.1 kV3 Core

Variant

++++

LOADING MODEL

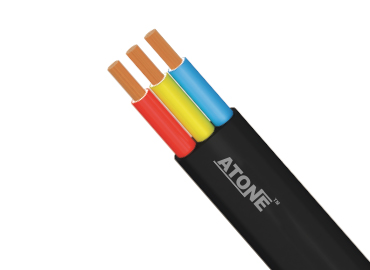

FACTORY PHOTO · 3 CORE

Three- and four-core flat cable built for submersible pump-motor duty down the bore. Finely stranded bare-copper conductors with PVC / XLPE / EPR-rubber insulation stay flexible and resist moisture, abrasion, grease and oil — rated 1.1 kV to IS 694:2010, BS 6500 and IEC 60227 for irrigation pumps, drinking-water supply and pump-motor power.

At a glance

Conductor

Copper

Voltage

1.1 kV

Temperature

+70 °C

Size range

1.0–95.0 mm²

Cores

3–4 core

Standard

IS 694:2010

Features

Excellent flexibility
Excellent resistance to moisture, abrasion, grease and oil
Long life
Excellent mechanical and electrical properties

Applications

Irrigation pumps
Drinking water supply pumps
Submersible pump motor power supply
Irrigation pumps
Drinking water supply pumps
Submersible pump motor power supply
Irrigation pumps
Drinking water supply pumps
Submersible pump motor power supply
Irrigation pumps
Drinking water supply pumps
Submersible pump motor power supply

Standards & compliance

Conforms toIS 694:2010

Conforms toBS 6500

Conforms toIEC 60227

Full specifications

Cable standard

IS 694:2010 · BS 6500 · IEC 60227

Conductor

Bare copper — flexible bunched (IS 8130)

Insulation

PVC / XLPE / EPR rubber

Outer sheath

PVC / EPR rubber

Working temperature

+70 °C

Nominal voltage

1.1 kV

Test voltage

3.0 kV

Min. bending radius

6 × cable diameter

Core colours

IS 694:2010 — 3C: Red/Yellow/Blue · 4C: +Black. IEC 60227 — 3C: Black/Blue/Brown · 4C: +Green/Yellow

Packing

Coils 100 / 200 / 300 / 500 / 1000 m

Size & current ratings

Conductor		Insulation		Sheath			Conductor Resistance at 20°C (max)	Current Rating At Ambient Temperature
Size of Cable	No. of Wire/Size of Wire	Thickness	Core OD	Thickness	Overall Size
Size of Cable	No. of Wire/Size of Wire	Thickness	Core OD	Thickness	3 Core	4 Core
Sq.mm	Nos.mm	mm	mm	mm	mm	mm	Ω/km.	Amps.

1.0	14/0.30	0.60	2.60	0.90	9.90×4.70	12.50×4.80	18.1	11
1.5	22/0.30	0.60	2.80	0.90	10.50×4.80	14.20×5.10	12.1	14
2.5	36/0.30	0.70	3.35	1.0	12.60×5.90	17.50×7.0	7.41	18
4.0	56/0.30	0.80	4.0	1.0	14.50×6.70	20.0×7.90	4.95	26
6.0	84/0.30	0.80	5.0	1.0	17.50×7.50	23.50×9.0	3.30	31
10.0	140/0.30	1.0	6.5	1.40	22.80×9.90	29.0×9.90	1.91	52
16.0	224/0.30	1.0	8.0	1.40	28.0×13.0	36.0×11.40	1.21	70
25.0	350/0.30	1.20	10.0	2.0	24.50×14.80	45.0×14.70	0.780	88
35.0	490/0.30	1.20	11.50	2.0	38.0×17.0	50.0×16.20	0.554	112
50.0	700/0.30	1.40	13.50	2.20	46.0×20.50	58.0×18.30	0.386	146
70.0	980/0.30	1.40	15.3	2.20	53.0×23.0	66.5×20.0	0.272	190
95.0	1330/0.30	1.60	18.0	2.40	60.0×28.0	77.3×23.50	0.206	225

Size (mm²)1.0

Stranding (No./mm): 14/0.30
Insulation (mm): 0.60
Core O/D (mm): 2.60
Sheath (mm): 0.90
3-Core O/D (mm): 9.90×4.70
4-Core O/D (mm): 12.50×4.80
Resistance (Ω/km): 18.1
Current (A): 11

Size (mm²)1.5

Stranding (No./mm): 22/0.30
Insulation (mm): 0.60
Core O/D (mm): 2.80
Sheath (mm): 0.90
3-Core O/D (mm): 10.50×4.80
4-Core O/D (mm): 14.20×5.10
Resistance (Ω/km): 12.1
Current (A): 14

Size (mm²)2.5

Stranding (No./mm): 36/0.30
Insulation (mm): 0.70
Core O/D (mm): 3.35
Sheath (mm): 1.0
3-Core O/D (mm): 12.60×5.90
4-Core O/D (mm): 17.50×7.0
Resistance (Ω/km): 7.41
Current (A): 18

Size (mm²)4.0

Stranding (No./mm): 56/0.30
Insulation (mm): 0.80
Core O/D (mm): 4.0
Sheath (mm): 1.0
3-Core O/D (mm): 14.50×6.70
4-Core O/D (mm): 20.0×7.90
Resistance (Ω/km): 4.95
Current (A): 26

Size (mm²)6.0

Stranding (No./mm): 84/0.30
Insulation (mm): 0.80
Core O/D (mm): 5.0
Sheath (mm): 1.0
3-Core O/D (mm): 17.50×7.50
4-Core O/D (mm): 23.50×9.0
Resistance (Ω/km): 3.30
Current (A): 31

Size (mm²)10.0

Stranding (No./mm): 140/0.30
Insulation (mm): 1.0
Core O/D (mm): 6.5
Sheath (mm): 1.40
3-Core O/D (mm): 22.80×9.90
4-Core O/D (mm): 29.0×9.90
Resistance (Ω/km): 1.91
Current (A): 52

Size (mm²)16.0

Stranding (No./mm): 224/0.30
Insulation (mm): 1.0
Core O/D (mm): 8.0
Sheath (mm): 1.40
3-Core O/D (mm): 28.0×13.0
4-Core O/D (mm): 36.0×11.40
Resistance (Ω/km): 1.21
Current (A): 70

Size (mm²)25.0

Stranding (No./mm): 350/0.30
Insulation (mm): 1.20
Core O/D (mm): 10.0
Sheath (mm): 2.0
3-Core O/D (mm): 24.50×14.80
4-Core O/D (mm): 45.0×14.70
Resistance (Ω/km): 0.780
Current (A): 88

Size (mm²)35.0

Stranding (No./mm): 490/0.30
Insulation (mm): 1.20
Core O/D (mm): 11.50
Sheath (mm): 2.0
3-Core O/D (mm): 38.0×17.0
4-Core O/D (mm): 50.0×16.20
Resistance (Ω/km): 0.554
Current (A): 112

Size (mm²)50.0

Stranding (No./mm): 700/0.30
Insulation (mm): 1.40
Core O/D (mm): 13.50
Sheath (mm): 2.20
3-Core O/D (mm): 46.0×20.50
4-Core O/D (mm): 58.0×18.30
Resistance (Ω/km): 0.386
Current (A): 146

Size (mm²)70.0

Stranding (No./mm): 980/0.30
Insulation (mm): 1.40
Core O/D (mm): 15.3
Sheath (mm): 2.20
3-Core O/D (mm): 53.0×23.0
4-Core O/D (mm): 66.5×20.0
Resistance (Ω/km): 0.272
Current (A): 190

Size (mm²)95.0

Stranding (No./mm): 1330/0.30
Insulation (mm): 1.60
Core O/D (mm): 18.0
Sheath (mm): 2.40
3-Core O/D (mm): 60.0×28.0
4-Core O/D (mm): 77.3×23.50
Resistance (Ω/km): 0.206
Current (A): 225

▸ highlighted column = your selected 3-core variant.
